Open sourceResearch preprint

See it. Feel it.Log every pothole.

IPDS is a low-cost dual-ESP32 and YOLOv8 system that detects potholes in real time, tracks each one, scores its severity from accelerometer jerk, and logs it with GPS and a timestamp.

Star on GitHub Try in Colab Read the paper

MIT licensed Runs without hardware Custom PCB included

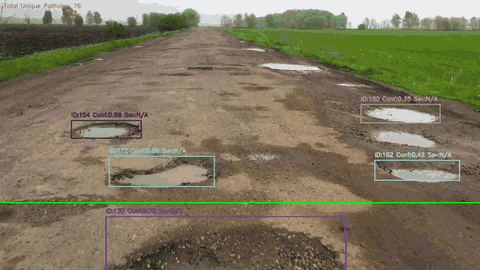

IPDS detecting and tracking potholes, each with a persistent ID, confidence and severity score — YOLOv8m detections with SORT tracking. Each pothole keeps one ID and is logged once when it crosses the reference line.

81.7%mAP@0.5 on validation

10–15 FPSon a CPU-only laptop

~200 msframe to logged CSV row

<₹2,500hardware cost per unit

How it works

From camera frame to a ranked maintenance log

Most pothole projects stop at drawing a box on an image. IPDS only logs a pothole when the camera sees it and the vehicle feels it.

Detect

YOLOv8m, fine-tuned for potholes, finds them in each frame of the ESP32-CAM stream.

Track

SORT (Kalman filter and Hungarian matching) gives each pothole a stable ID, so it is counted once.

Feel

At the wheel line, the hub asks the sensor node for an MPU6050 burst and computes peak jerk.

Fuse

No impact, no log. Severity combines detection confidence (70%) with measured impact (30%).

Log

Each event goes to CSV with RTC time and GPS position, plus an annotated MP4 of the drive.

Architecture

Two ESP32 boards, one processing hub

The camera streams continuously. The sensors only answer when asked. A Python hub ties them together.

Vision node

ESP32-CAM

Streams 320×240 MJPEG frames from an OV2640 camera over WiFi.

OV2640MJPEG on :81

Sensor node

ESP32 dev board

Answers GET /query?pothole_id=N with accelerometer, timestamp and GPS fields as JSON.

MPU6050NEO-6M GPSDS3231 RTC

Processing hub

Python on a laptop or Jetson

1YOLOv8m detects potholes and SORT assigns persistent IDs.
2Holds back tracks that are too large, too wide, or stationary for more than 10 frames.
3When a track crosses the reference line, it queries the sensor node five times.
4Computes peak jerk. No impact means the event is rejected.
5Scores severity, appends a CSV row and annotates the video.

Why two ESP32s?

Reading I²C sensors on the ESP32-CAM blocks frame capture and drops the frame rate. Moving all sensor I/O to a second, event-driven board keeps the video smooth, and both boards stay cheap.

Results

Measured, not just claimed

Model metrics on the validation split, and a real 12-minute field drive on 20 March 2026.

Model accuracy

YOLOv8m · 640×640 input · 598 train / 67 validation images

Metric	Value	Bar
mAP@0.5	81.68%
mAP@0.5:0.95	55.95%
Precision	82.33%
Recall	74.42%

Field log: 50 potholes in one drive

Severity bands by peak jerk (m/s³) from output.csv

Band	Peak jerk	Rows
Low	1.6–2.7	8
Medium	3.0–5.9	22
High	6.0–9.4	20

jerk_norm = min(peak_jerk / 20, 1)
severity  = 0.7 × confidence + 0.3 × jerk_norm

Hardware

Built by hand, then made into a PCB

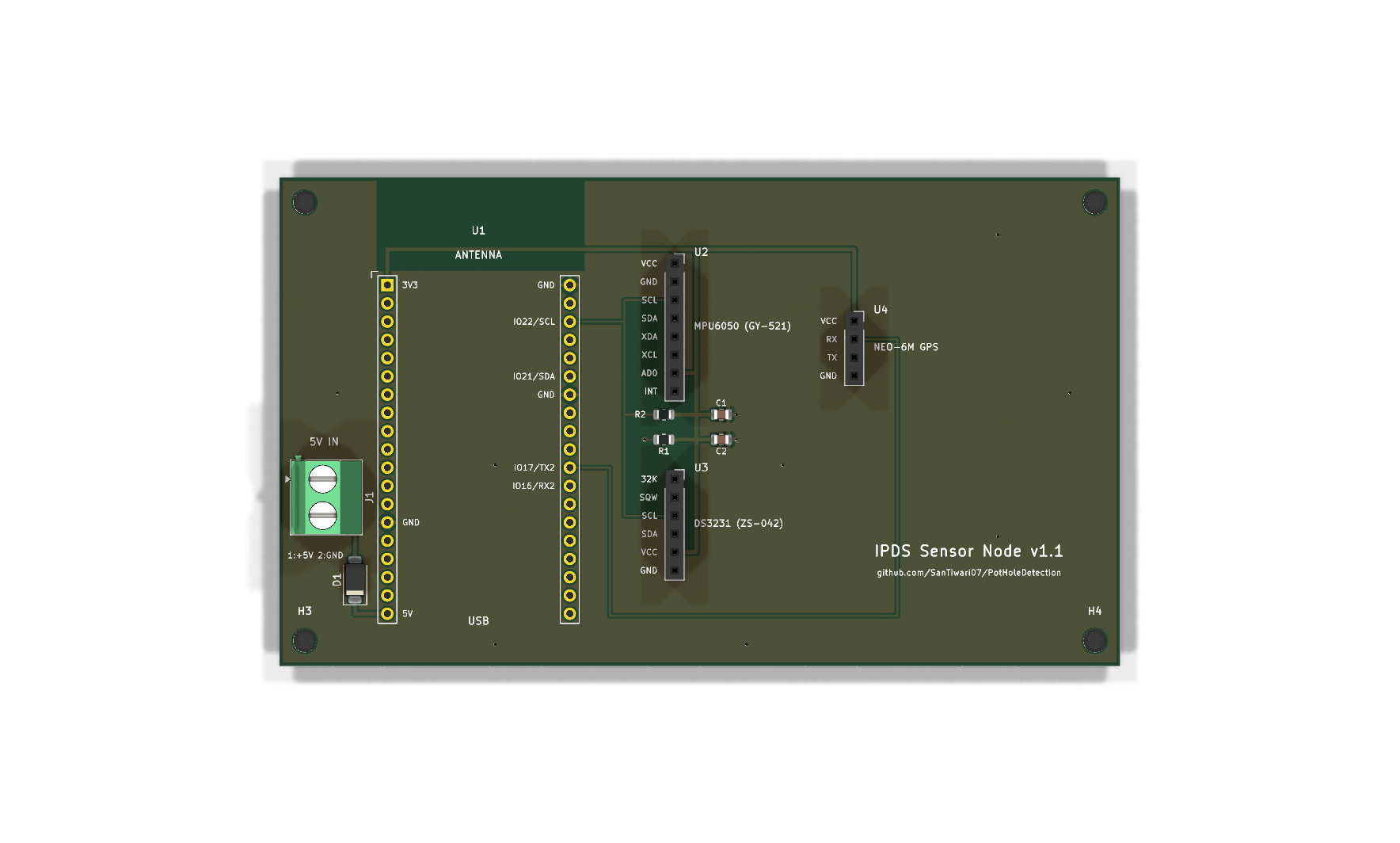

The prototype is two perfboard decks: the ESP32-CAM on top, and the ESP32 sensor node with the MPU6050, DS3231 and NEO-6M below. Its design is now a 2-layer carrier board, with Gerbers, BOM and schematic ready to order.

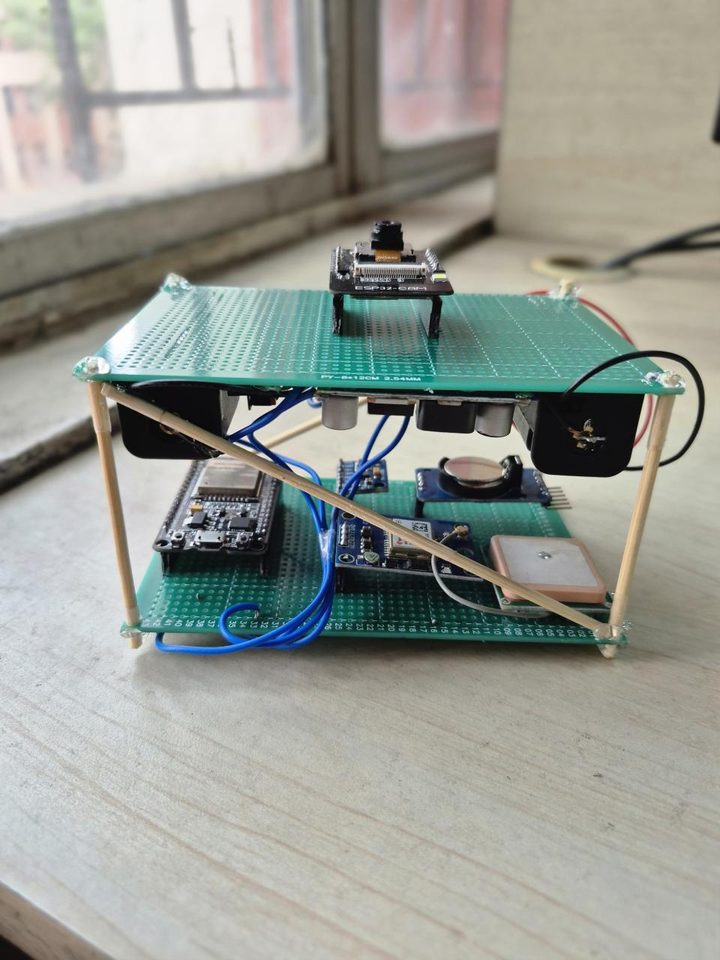

Assembled two-deck IPDS prototype: ESP32-CAM on the top deck, ESP32, MPU6050, DS3231 RTC and NEO-6M GPS on the lower deck — **Assembled rig**Camera deck above, sensor deck below

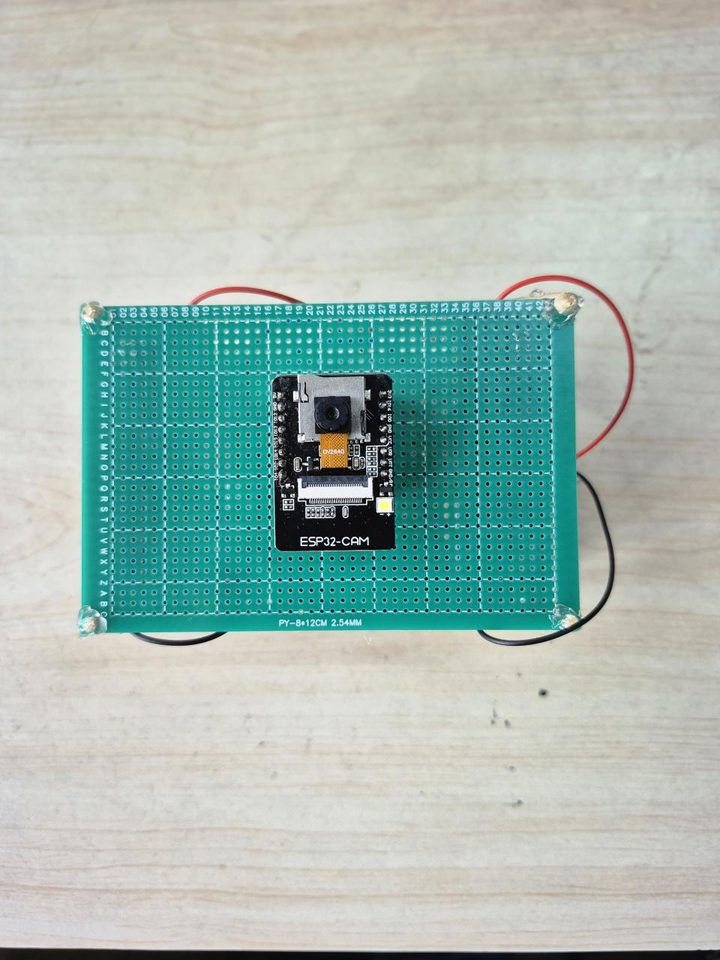

Top view of the ESP32-CAM vision node mounted on perfboard — **Vision node**ESP32-CAM with the OV2640 camera

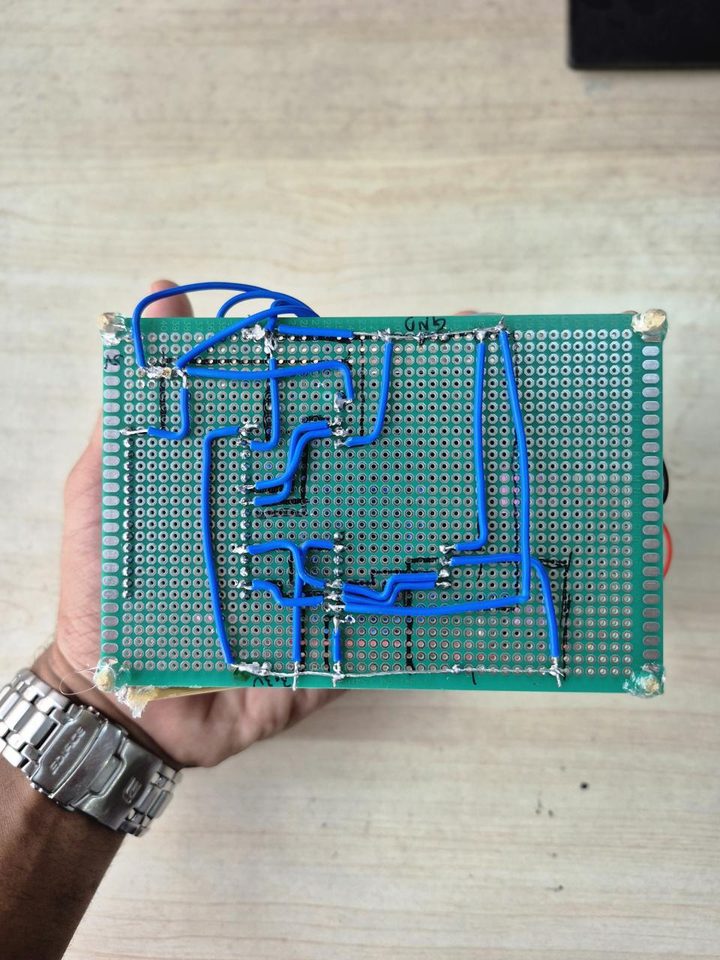

Hand-soldered point-to-point wiring on the underside of the sensor deck — **Hand-wired underside**Point-to-point wiring of the sensor deck

KiCad ERC / DRC: 0 violations Gerbers Schematic

Bill of materials

ESP32-CAM (AI-Thinker)Vision node, MJPEG stream
ESP32 dev boardSensor node, HTTP API
MPU60506-axis IMU, peak jerk
NEO-6M GPSLatitude and longitude
DS3231 RTCTimestamps offline
Laptop or Jetson NanoYOLOv8 inference

Wiring and setup guide KiCad project

Diagrams

Explore the system visually

Three detailed diagrams of the architecture, the detection logic and the sensor-node wiring.

System block diagram

Seven layers from sensors and firmware to computer vision, fusion and storage.

Open diagram

Detection flowchart

Every decision a frame passes through, from capture to the CSV log.

Open diagram

Sensor-node schematic

Pin-level wiring for the MPU6050, DS3231 and NEO-6M, with I²C pull-ups.

Open diagram

Try it

Running in 30 seconds, no hardware needed

No install

Google Colab

Run detection and tracking on a sample image or your own road video in the browser.

Open notebook

No hardware

Wokwi simulation

The ESP32 sensor node with MPU6050, NEO-6M GPS and DS3231 running in your browser.

Open simulation

Web UI

Gradio demo

Upload images or videos and see detections. Deployable as a Hugging Face Space.

View demo app

git clone https://github.com/SanTiwari07/PotHoleDetection.git
cd PotHoleDetection
pip install -r requirements.txt

# Vision-only on any road video (weights download on first run)
python python/main.py --source path/to/road_video.mp4

Documentation

Go deeper

Research paper

Full method, equations and field trials (PDF).

Architecture

Nodes, protocols and data flow.

Hardware and wiring

Pinouts, flashing and MPU6050 calibration.

Technical spec

Every parameter, threshold and result.

FAQ

Common questions

Do I need the ESP32 hardware to try it?

No. Offline mode runs the vision pipeline on any road video, the Colab notebook runs in the browser, and the Wokwi simulation runs the sensor node. In offline mode severity is vision-only and the jerk and GPS columns stay empty.

How is severity calculated?

Peak jerk from the MPU6050 burst is normalised against 20 m/s³ and capped at 1. Severity is 0.7 × YOLO confidence + 0.3 × normalised jerk. Events below the jerk threshold (default 1.5 m/s³) are rejected, so a pothole must be both seen and felt.

What data was the model trained on?

The Pothole Detection dataset by andrewmvd on Kaggle: 665 images converted from Pascal VOC to YOLO format, split 598 / 67. The training scripts in the repo reproduce the model.

Why use two ESP32 boards instead of one?

I²C sensor reads on the ESP32-CAM block frame capture and cut the frame rate. A second board handles all sensor I/O on demand, keeping the video stream smooth while the total cost stays under ₹2,500.

Can I use IPDS in my own project?

Yes. The project code is MIT licensed. Third-party parts keep their own licenses: sort.py is GPL-3.0 and Ultralytics YOLOv8 is AGPL-3.0. If you use it in research, please cite the paper.

Like IPDS? Give it a star.

Stars help other students, researchers and city engineers find the project. It takes one click.

Star IPDS on GitHub

The team

ST
Sanskar TiwariCore architecture and ML pipeline
SB
Swarali BansodSensor integration and firmware
EK
Eshwari KognoleHardware design and testing
SS
Shruti ShindeData collection and validation

Cite this work

Paper on Zenodo, or cite the software:

@software{tiwari2026ipds,
  author  = {Tiwari, Sanskar and Bansod, Swarali and
             Kognole, Eshwari and Shinde, Shruti},
  title   = {Real-Time Pothole Detection Based on
             Vision-Dominant Sensor Fusion and
             Dual ESP32 Architecture},
  year    = {2026},
  version = {1.0.0},
  url     = {https://github.com/SanTiwari07/PotHoleDetection}
}
